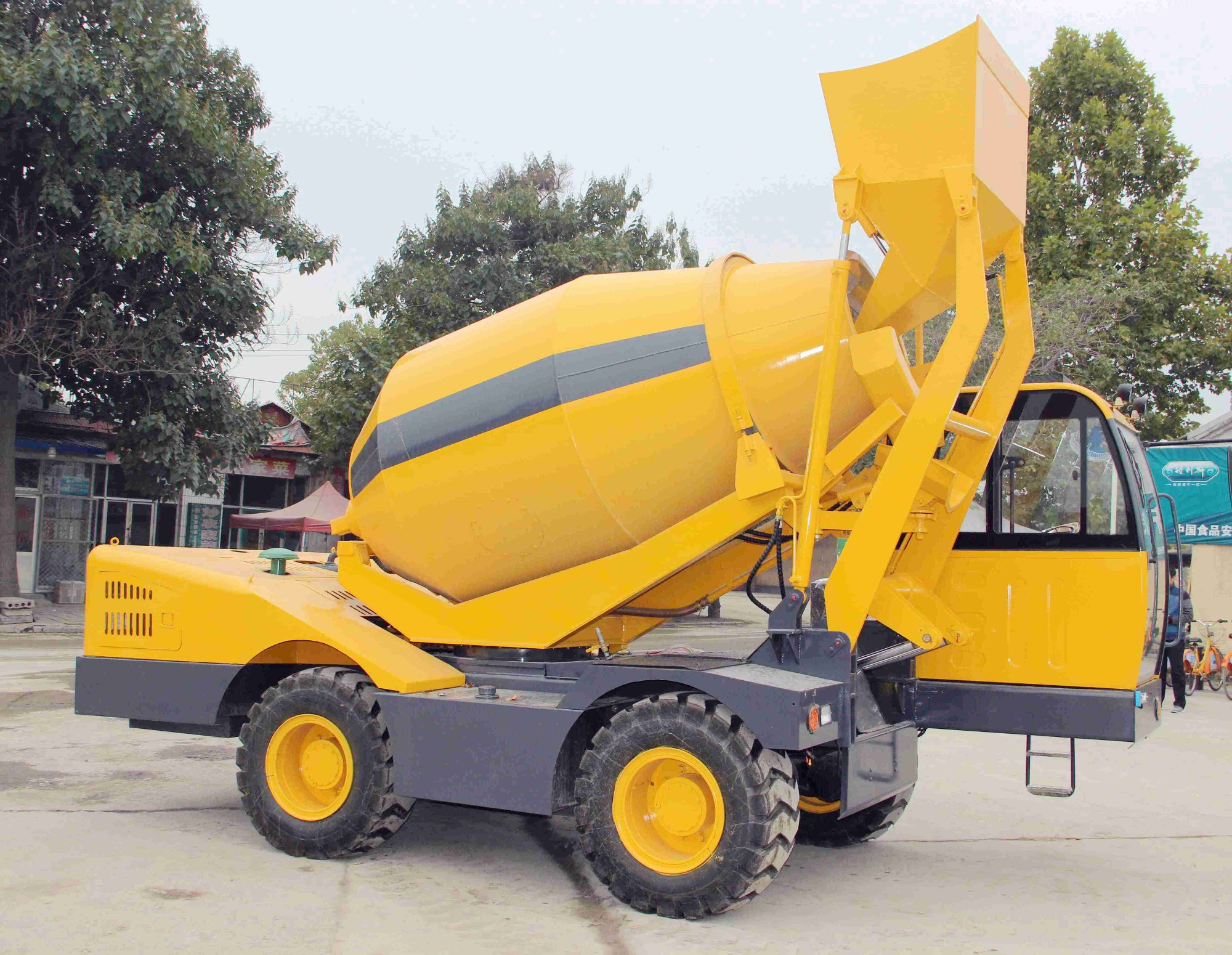

2018 Hot Sale New mobile Concrete Mixer Machine,Self Loading Concrete Mixer Truck for Sale

HANK 3.5 Cubic Meters Self Propelled Hydraulic Mobile Self Loading Concrete Mixer Truck Price

Brand Hongyuan
Product origin Shandong,China
Delivery time 20 working days
Supply capacity 30 sets per month

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.
Main Features
1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.

Email

The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

Name	Item	Specification
	Net	8300 KG
	Transmission	Full Hydraulic 4 WD
	Brake	Air Brake
	Chassis	Off-road
	Tread	1880mm
	Wheelbase	2250mm
	Loader bucket	capacity	0.6m3 Hydraulic Control
	Tilt angle	30%
	Speed	High			0-25KM/H
		Low			0-9KM/H
	MAX drum capacity	6.2M3
	Tyre model	16/70-20 wire tyres
Engine	Type	YUCHAI		4108 Turbo charged
	Rated Power/RPM	85KW/2200RPM
	Max.Torque/RPM	460N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Output capacity	3.5 M3
	Bank Angle	16 °
	Rotation Angle	19-21R/min
Chute	Swing Angle	≥60°
	Angle control	Hydraulic
	Weighing model	computer control
		Concrete Standard				C15.C20.C25 C30
	Accuracy	Cement				≤±2%/time
		Relative Error				≤±3%/time
		water				≤±1%/time
		Additive				≤±1%/time
		Admixture				≤±2%/time
Loader control	Hydraulic 4 way stick
Size	7500x2700x3380mm
