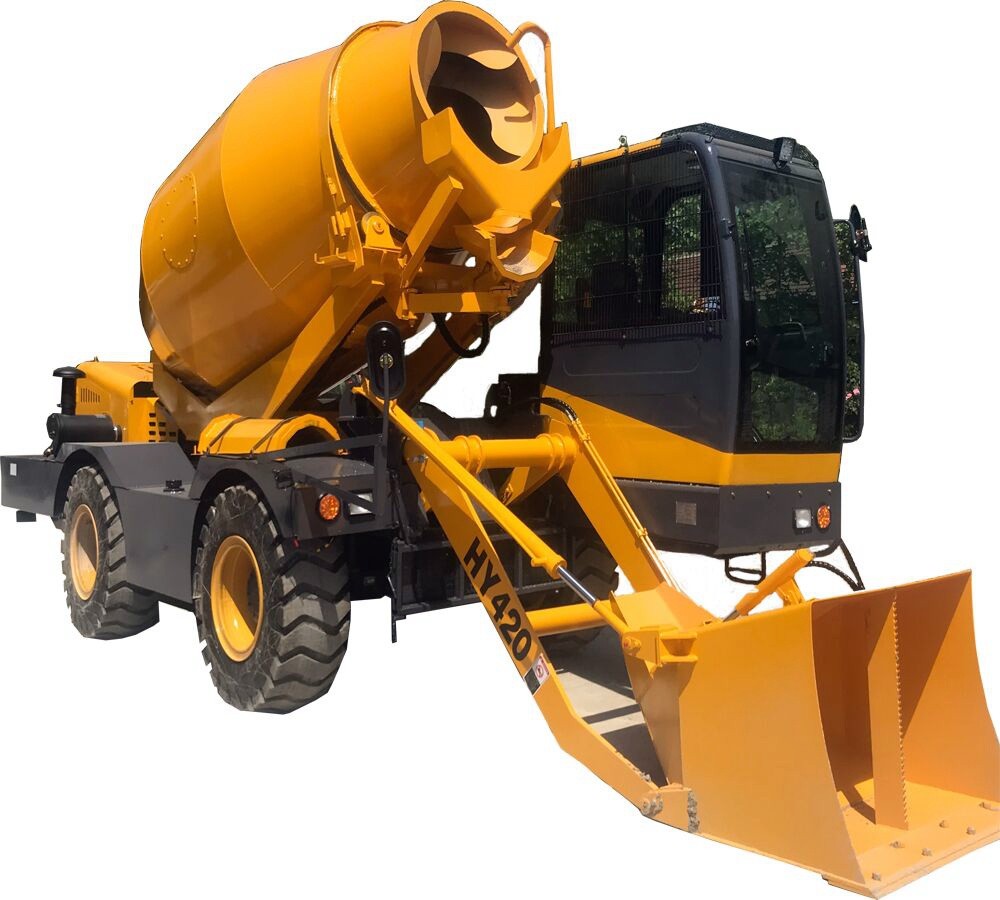

New Concrete Mixer Truck
  • Hongyuan
  • Shandong,China
  • 20 working days
  • 30 sets per month

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.
Main Features
1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.


Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.


The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.


Main Features

1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.

Name

Item

Specification

Overall machine

 Net

8300 KG

 Transmission

Full Hydraulic 4 WD

Brake

Air Brake

 Chassis

Off-road

Tread

1880mm

Wheelbase

2250mm

 Loader bucket

capacity

0.6m3 Hydraulic Control

Tilt angle

30%


Speed

High

0-25KM/H

Low

0-9KM/H

MAX drum capacity

6.2M3

 Tyre model

16/70-20 wire tyres

 Engine

 Type

YUCHAI

Cummisn

4108 Turbo charged

4BT3.9-C125

Rated Power/RPM

95KW/2200RPM Or 125HP /2200RPM

Max.Torque/RPM

460N.M/1400RPM

Cylinder

4

Starter

Electric

Cooling type

water cooling



Maxing Drum

Output capacity

4 M3

Bank Angle

16 °

Rotation Angle

19-21R/min

Chute

Swing Angle

60°

Angle control

Hydraulic

Loader

Weighing model

computer control

Concrete Standard

C15.C20.C25 C30

Accuracy

Cement

≤±2%/time

Relative  Error

≤±3%/time

water

≤±1%/time

 Additive

≤±1%/time

Admixture

≤±2%/time

 Loader control

 Hydraulic 4 way stick

Size

7500x2700x3380mm

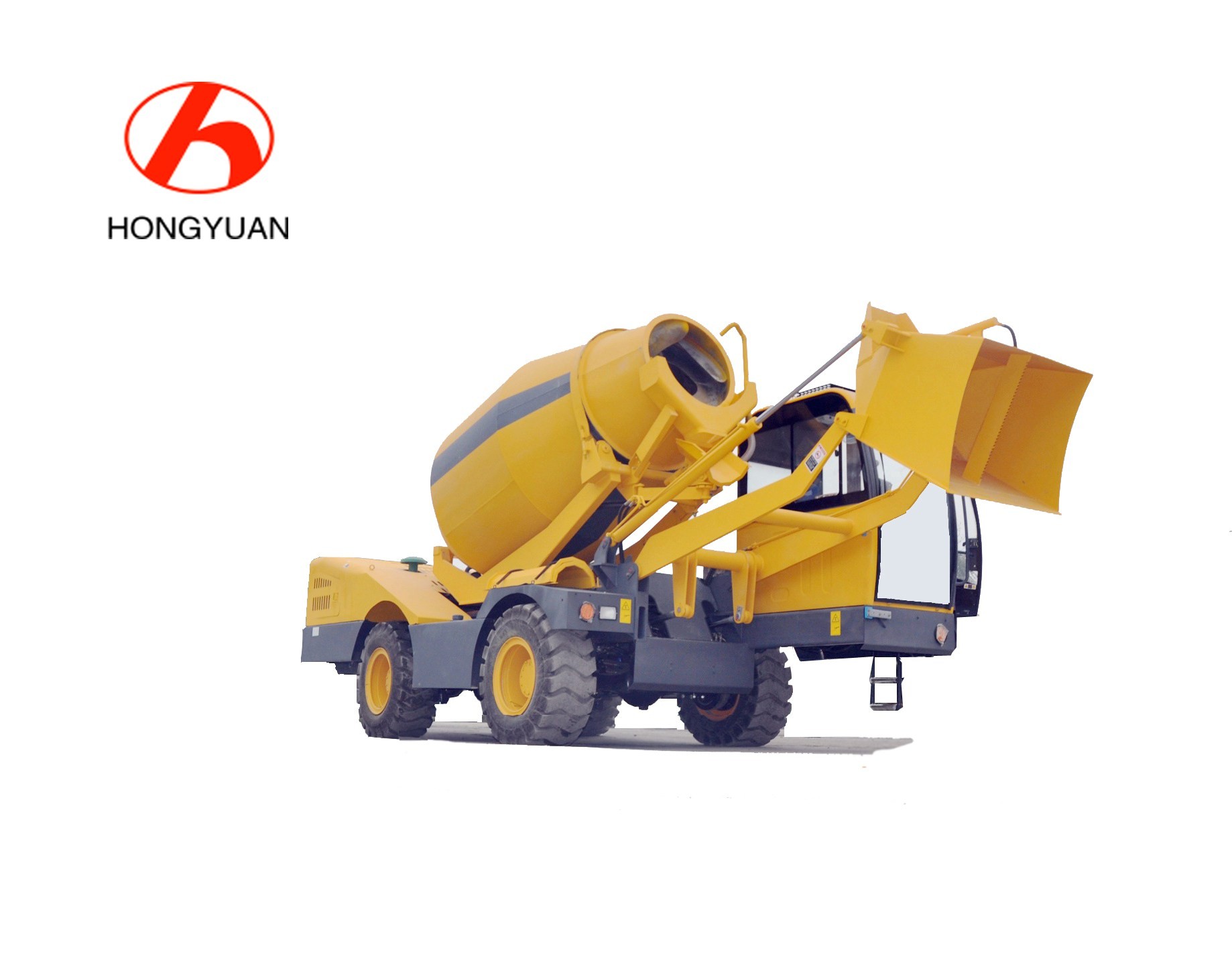

3.5M3 self-loading concret emixer








Qingzhou Hongyuan Vehicles CO.,ltd,we are professional manufacturer for mini wheel loader ,cross forklift,site dumper,sugarcane loader ,concrete mixer truck with more than 13 years history.Now our wheel loaders are working in Germany Sweden Finland Poland Norway ,Belgium,Netherlands,Estonia,Turkey,Russia,Japan,Australia,Italy... More than 30 countries all over the world.We have good relationship with domestic trading company these years ,Now we set our trade department and we could have better service for oversea customer .We have rich confidence about our competitive price and durable quality machine.
     Our factory located in Qingzhou city,Shandong Province ,China.Welcome for your visit !Hope to cooperate with you in the near future !


                                 3.5M3 self-loading concrete mixer price
